Front & Rear Disc Brake Conversion Kits for Early Jeeps and Scouts
Upgrading to disc brakes is one of the most worthwhile improvements you can make to an early 4WD. Better stopping power, improved wet-weather performance, easier maintenance, and more consistent braking all make disc conversions a practical upgrade for trail rigs and daily drivers alike.
But when it comes to early Jeeps and International Scouts, many builders run into confusion while shopping for kits. Listings often emphasize the vehicle make, yet most early platforms share Dana axles — meaning compatibility is determined by the axle design, not the badge on the grille.
This guide focuses specifically on front and rear disc brake conversion kits, what fits, and how to choose the right setup.
Why Disc Brakes Are a Major Upgrade
Compared to drum brakes, disc systems offer:
✔ improved stopping power
✔ better performance in mud and water
✔ faster heat dissipation on long descents
✔ easier inspection and maintenance
✔ self-cleaning action in off-road conditions
For vehicles that see trails, river crossings, or mountain driving, the improvement is immediate and noticeable.
Axle Identification Comes First
Early Jeeps and Scouts commonly used:
-
Dana 27 (front)
-
Dana 30 (front)
-
Dana 44 (front or rear)
Disc conversion compatibility depends on:
-
spindle design
-
knuckle style
-
hub configuration
-
axle flange pattern (rear)
-
rotor offset & hub depth
Important: If two vehicles share the same Dana axle architecture, they can often use the same conversion components — regardless of manufacturer branding.
Front Disc Brake Conversions
Common Conversion Approach
Bolt-On Bracket Conversion Kits
Available for Dana 27, 30, and 44 axles.

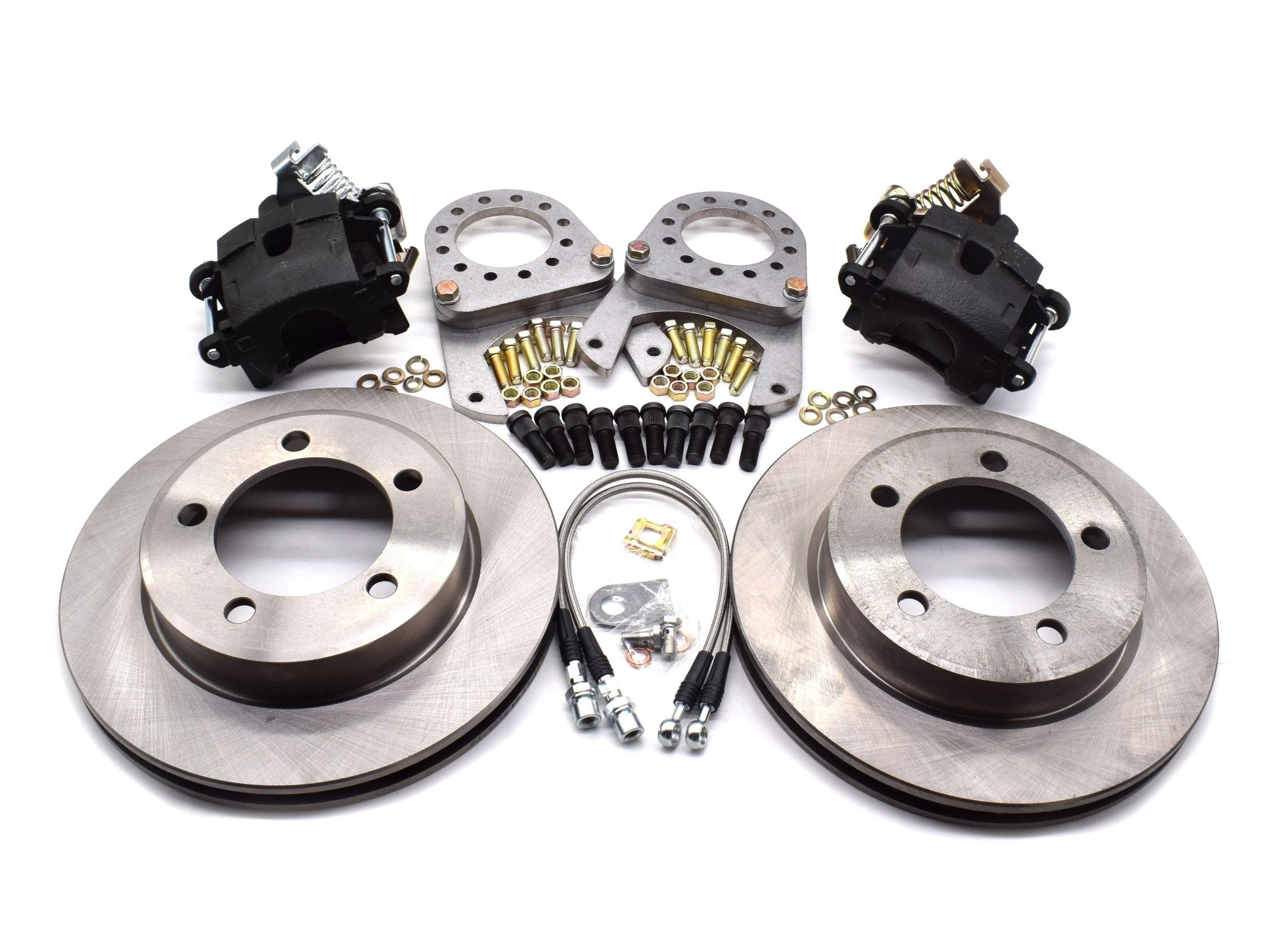

Includes:
-
caliper mounting brackets
-
rotors matched to hub offset
-
calipers & pads
-
hardware & hoses
Ideal when you want to retain original knuckles.
Front Conversion Benefits
-
stronger and more consistent braking
-
improved steering control under braking
-
reduced fade on steep descents
-
easier pad replacement
Usually if you order a Scout brake conversion kit your getting a jeep kit. You will open the box and have a paper that says JEEP on it.
Also All front kits on the market use a Caliper and pads from a 1975 Chevy k10 with the 350 engine.
Rear Disc Brake Conversions
Rear disc conversions are popular for Dana 44 axles found in both Jeeps and Scouts.

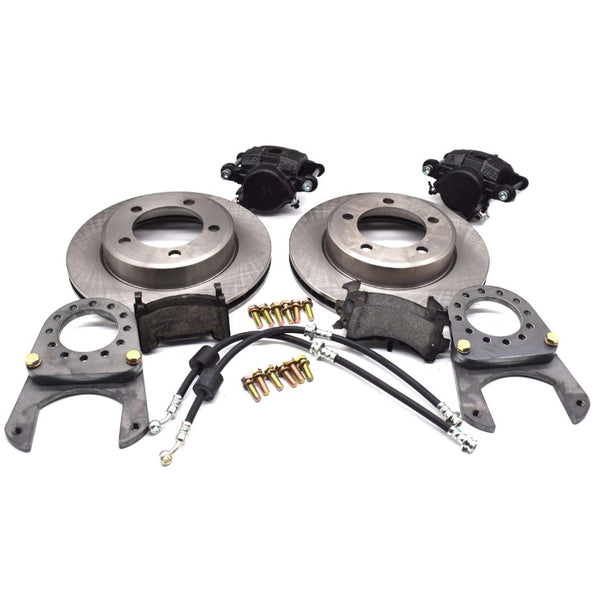

Typical Rear Conversion Kit Includes:
-
caliper mounting brackets
-
rotors matched to axle flange offset
-
calipers (often GM metric style)
-
pads & hardware
-
flexible brake hoses
-
parking brake solution (mechanical or driveline)
Parking Brake Options (from a 1990 Cadillac Deville)
One of the biggest considerations for rear disc conversions is the parking brake. If the parking brakes are not adjusted right the first time they can be a nightmare to correct.
Common solutions:
Mechanical calipers with integrated parking brake
-
retains traditional hand brake function
-
common in complete kits
Jeep Kits vs Scout Kits: Ignore the Label
Many kits are marketed specifically for Jeep applications, but may fit Scout axles — and vice versa — because they share Dana axle designs.
When evaluating a kit, confirm:
✔ axle model and year range
✔ backing plate or flange bolt pattern
✔ hub and rotor offset
✔ wheel bolt pattern compatibility
✔ caliper clearance with wheels
Do not rely solely on the vehicle listed in the product title.
Front vs Rear Upgrade Strategy
Front Disc Only
✔ largest improvement per dollar
✔ ideal for budget builds
✔ retains simpler rear drum parking brake
Front + Rear Disc
✔ balanced braking performance
✔ improved mud/water performance
✔ easier maintenance all around
✔ best for larger tires and added vehicle weight
Master Cylinder & Brake Balance Considerations
Switching to discs often requires:
-
disc/disc or disc/drum master cylinder
-
proportioning valve adjustment (PV2 or PV4)
-
residual pressure valve removal or modification
-
brake pedal free-play check
Proper hydraulic balance ensures the conversion performs safely and predictably.
Common Mistakes to Avoid
❌ ordering by vehicle name instead of axle type
❌ ignoring rotor offset and hub depth
❌ failing to verify wheel clearance
❌ overlooking parking brake solutions
❌ skipping master cylinder compatibility
Why Axle-Based Compatibility Matters
Understanding Dana axle interchangeability allows you to:
✔ access more kit options
✔ save money by sourcing equivalent parts
✔ avoid compatibility issues
✔ simplify future maintenance
✔ perform trail repairs with common components
This knowledge separates a confident builder from a frustrated parts shopper.
Final Thoughts
Front and rear disc brake conversions transform the drivability and safety of early Jeeps and Scouts. The key to choosing the right kit isn’t the vehicle brand — it’s the axle beneath it.
Identify the axle.
Confirm the dimensions.
Ignore the marketing labels.
Build your braking system around the hardware that actually matters, and you’ll end up with a reliable, trail-ready setup that performs far beyond the original design.
