Setting Up WinALDL on a Modern Laptop (Before You Start Troubleshooting)

Before you chase vacuum leaks, swap injectors, or question your Howell PROM, you need reliable data. WinALDL remains the most useful tool for diagnosing GM TBI systems — including Howell conversions — but modern laptops and USB adapters can make setup confusing.

This guide walks you through getting accurate data from your Howell ECM so your diagnostics are based on facts, not guesswork.

The hardest part is waiting for the $60 cable to show up in the mail.

Why WinALDL Matters

WinALDL allows you to monitor:

  • MAP voltage & kPa

  • TPS voltage

  • coolant temperature (CTS)

  • O2 sensor activity

  • BLM & INT fuel trims

  • IAC counts

  • idle & closed loop flags

  • system voltage

  • Codes
  • Flag dats
  • Datalogs

Without this data, tuning becomes trial and error.

STEP 1 — Confirm ECM & Baud Rate

Most Howell AMC 258 systems use:

ECM: 1227747 / Howell equivalent (easy identification one 24 pin connector and one 32 pin connector)
Baud rate: 160 baud
ALDL mode: Mode 1 data stream

If unsure, check Howell documentation or the ECM service number. On the outside or inside the ecm under the door with 2 screws.

STEP 2 — Get the Correct ALDL Cable

You need a 160-baud ALDL interface cable, not a generic OBD cable.

Recommended cable types

✔ USB ALDL cable (preferred)
✔ cables specifically listed for GM Tbi 160 baud

Avoid:

❌ Bluetooth OBD adapters
❌ generic OBD-II scanners
❌ cheap Prolific chipset cables (driver issues)

STEP 3 — Install USB Drivers (Critical)

Modern Windows often assigns incorrect drivers.

For FTDI-based cables:

  1. Plug cable into laptop.

  2. Open Device Manager.

  3. Locate USB Serial Port.

  4. Confirm it shows COM port number. (com6 or com3) You are only identifying what port you are plugged into

  5. If you see Serial port over Bluetooth then install a FTDI driver

If driver fails:

Download from FTDI official site.

STEP 4 — Set COM Port Correctly (this can be skipped)

In Device Manager:

  1. Right-click USB Serial Port → Properties

  2. Port Settings → Advanced

  3. Set COM port to COM1–COM4

  4. Apply and close

WinALDL does not reliably detect high COM numbers.

STEP 5 — Install WinALDL

WinALDL is legacy software but runs on modern Windows.

Install tips:

  • Run installer as Administrator

  • If needed, run in Windows XP compatibility mode

  • Extract to a simple folder (example: C:\WinALDL)

STEP 6 — Connect to the Jeep

  1. Turn ignition OFF.

  2. Connect ALDL cable to diagnostic connector.

  3. Connect USB to laptop.

  4. Turn key to ON (engine off).

STEP 7 — Configure WinALDL

Open WinALDL.

Set:

  • ECM Type: 1227747

  • Baud: 160

  • COM Port: your assigned port (this is where com number matters)

Click Connect.

If connected correctly, data will begin updating. You will see a flashing 23 in green at the top of the program. If not, then your not connected or key is not on.

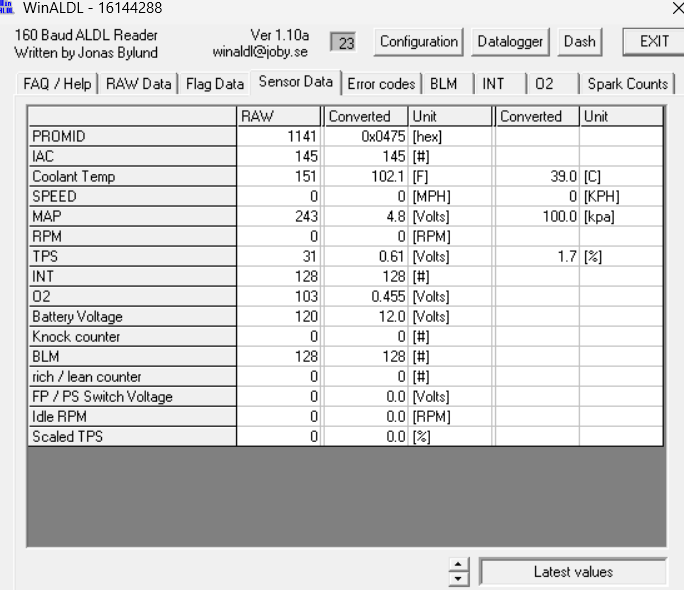

STEP 8 — Verify Live Data (KOEO)

With key on, engine off, confirm:

  • MAP ≈ 100 kPa

  • TPS ≈ 0.48–0.53 V

  • coolant temp near ambient

  • battery voltage displayed

  • IAC counts present (~145)

  • BLM 128

If values look reasonable, communication is working.

STEP 9 — Start Engine & Confirm Sensor Response

Verify:

✔ MAP voltage changes with throttle
✔ TPS responds instantly
✔ coolant temp rises gradually
✔ O2 voltage active once warm
✔ IAC counts change during idle control

No response = wiring or sensor issue.

STEP 10 — Save a Baseline Log

Before making any adjustments:

  1. Click Log Data

  2. Save file with date & notes

  3. Record cold start and warm idle

This baseline is invaluable for comparison.

Common Connection Problems & Fixes

No data displayed

✔ confirm correct COM port
✔ verify 160 baud selection
✔ check ALDL ground integrity

Random characters or gibberish

✔ incorrect baud rate
✔ wrong ECM selection(find this under configuration)

Connection drops

✔ poor ground
✔ low battery voltage
✔ faulty USB cable

Pro Tips for Modern Laptops

✔ disable USB power saving in Device Manager
✔ avoid USB hubs — plug directly into laptop
✔ keep laptop charger connected during logging
✔ label log files with conditions & changes

Why Setup Matters

Incorrect data leads to:

  • misdiagnosed fuel issues

  • unnecessary parts replacement

  • tuning errors

  • wasted hours

Correct data allows:

✔ accurate diagnostics
✔ fuel trim analysis
✔ sensor verification
✔ efficient troubleshooting

Before Beginning Diagnostics

Once WinALDL is working:

✔ record KOEO baseline
✔ record cold start log
✔ record warm idle log (165F plus)

Then begin troubleshooting.

Next Step

After setup, the next pre-diagnostic checks should be:

  1. Verify sensor voltages

  2. Confirm fuel pressure stability (Only use External 0-15 psi gauge or 0-30 psi gauge)

  3. Check for unmetered air leaks

  4. Confirm ignition baseline

WinALDL will confirm each step.

Reliable data is the foundation of every successful Howell TBI diagnosis.

Set it up correctly — and you eliminate guesswork before turning a single wrench.
