The Hidden Brake System Failure in Vintage 4WDs (And How to Fix It)

There's a reason serious vintage 4WD builders obsess over brake systems before they turn a wrench on anything else. A clean, modern hydraulic system isn't just about stopping power — it's about building something that stays reliable, serviceable, and trustworthy for the next 50 years.

Fresh rotors and a core caliper — the starting point of a properly rebuilt stopping system.

The Problem With What You've Got

Every vintage 4WD that rolls into a shop carries 40 to 60 years of brake system history inside its lines. That history is mostly rust, scale, and brake fluid that's absorbed so much moisture it's closer to water than the fluid it started as. The iron and steel components that made up these original systems — master cylinders, wheel cylinders, hard lines, calipers — were adequate for their era. But steel corrodes. Iron pits. And once the degradation begins inside a closed hydraulic circuit, it never stops on its own.

The biggest culprit most builders overlook is the steel master cylinder. When the bore of a cast-iron master cylinder corrodes and pits, it does two things simultaneously: it destroys the seal contact surface that maintains hydraulic pressure, and it introduces ferrous contamination directly into the fluid. That contamination travels everywhere — into the brake lines, into the wheel cylinders, into the calipers. Every component downstream becomes a repository for that iron debris and the corrosion it causes. You can bleed those brakes a hundred times, but if the master cylinder bore is compromised, you're circulating the problem, not solving it.

The Modern Aluminum Master Cylinder Difference

Contemporary aluminum master cylinders aren't a compromise — they're a genuine engineering improvement over their cast-iron predecessors, proven in applications far more demanding than anything your Scout, CJ, or Bronco will ever see.

Aluminum doesn't corrode the way steel does. The hard-coated bores of a modern aluminum master cylinder maintain their geometry and surface finish under the chemical stress of brake fluid far better than cast iron. That means better seal life, more consistent pedal feel over time, and — critically — no ferrous contamination entering your hydraulic circuit. The fluid stays clean. The downstream components stay clean. The whole system behaves predictably and remains serviceable.

Some builders worry that aluminum is "too soft" for serious off-road use. That concern is misplaced. The same alloys used in racing master cylinders, high-performance street cars, and modern truck brake systems are what go into a properly specified aluminum master for your vintage rig. They handle heat, pressure spikes, and years of hard use without complaint. What they won't do is slowly destroy your brake fluid and everything connected to it.

Single vs. Dual Vacuum Booster — Why It Matters

If you're building a serious vintage 4WD system — one you'll depend on in the backcountry — the booster conversation is unavoidable. Not all vacuum-assist setups are created equal, and the difference matters when the trail gets steep.

Single Vacuum Booster

A single booster provides one stage of vacuum-assisted assist between pedal input and the master cylinder. It's a proven, simple design that works well for most street-use vintage rigs with moderate braking demands. For a daily driver or light trail vehicle, a properly rebuilt single booster paired with a clean modern master cylinder is a massive improvement over a worn original system. Engine vacuum is typically sufficient, and the single-diaphragm design is compact and easy to service.

Dual-Diaphragm Vacuum Booster

A dual-diaphragm booster stacks two vacuum chambers in series, effectively doubling working surface area without dramatically increasing the unit's diameter. The result is a significantly higher assist ratio — less pedal effort producing more hydraulic pressure at the master. For a heavy vintage 4WD running larger tires, added armor, a winch, and trail gear, the increased stopping force a dual booster provides can be the difference between a controlled stop and a situation that gets away from you on a downhill.

Dual boosters are the preferred choice for any vintage rig that sees serious trail work, carries significant weight, or has been lifted to accommodate larger-diameter tires. They reach full assist with less pedal travel, which also improves modulation and control during technical braking situations.

Stainless Lines: The Foundation of the Clean Build

Even the best master cylinder and booster will be undone by failing hard lines. Factory steel brake lines in a vintage 4WD are almost universally near or past end of service life. They rust from the outside in from road spray and trail mud, and from the inside out from moisture-contaminated fluid. The failure mode is slow and invisible — until it isn't. When a hard line lets go under braking pressure, it lets go completely.

Stainless steel brake lines change the equation permanently. Properly flared and fitted stainless hard line doesn't rust. It doesn't pit. It maintains consistent wall thickness and dimensional integrity for the life of the vehicle. When you build with stainless hard lines, you're building a system you can visually inspect and trust. Paired with stainless braided flex hoses at the axles and calipers, you eliminate the internal expansion and degradation that rubber hoses develop over time — which contributes directly to a firmer, more consistent pedal feel from the first push.

Stainless caliper hardware and hose fittings — the details that keep a clean system clean.

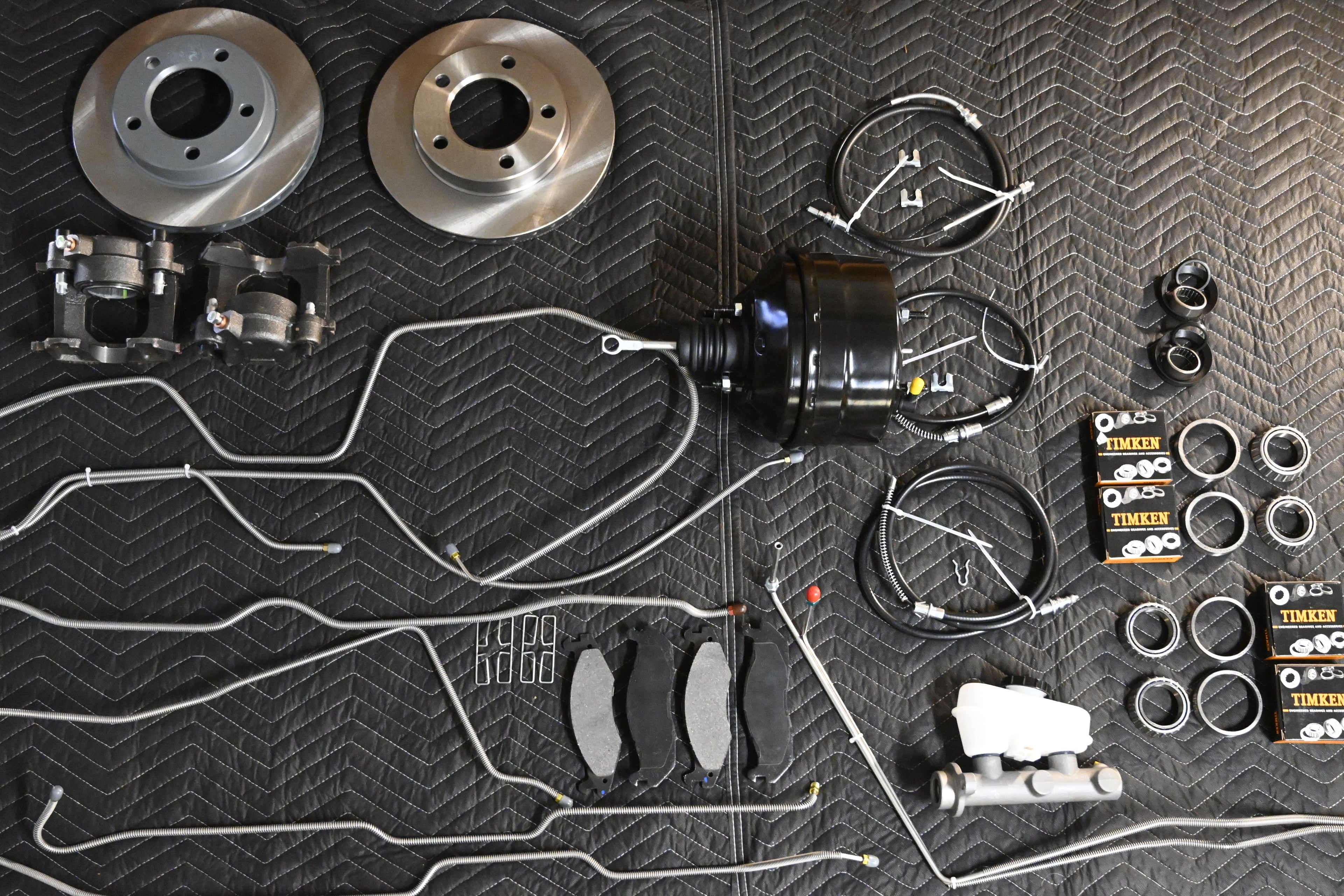

A complete clean system: fresh hardware, quality seals, right components throughout.

Timken Bearings: While You're Already In There

Any serious brake rebuild on a vintage 4WD should include fresh wheel bearings — and Timken is the only brand worth specifying. As the originator of the tapered roller bearing and the OEM supplier for virtually every axle and hub application found in classic Scouts, CJs, Broncos, and IH pickups, Timken bearings are what these vehicles were engineered around. When you're pulling hubs to replace rotors or rebuild backing plates, you're already at the bearing. Fresh cones and cups are cheap insurance against a hub failure on the trail.

Worn wheel bearings also cause brake problems that are easy to misdiagnose. A loose bearing allows the rotor to wobble on the spindle — producing pulsation under braking that feels exactly like a warped rotor. Properly preloaded Timken bearings, correctly packed and adjusted, give a solid foundation for everything above them. Your braking system can only perform as well as the bearing it rests on.

Built to Stay Serviceable

Here's the principle that ties everything together: a clean system is a serviceable system. The goal isn't just to have a brake system that performs well when it's first built — it's to have one that's still easy to work on three, five, and ten years from now.

When you build with stainless lines, an aluminum master, quality calipers, and fresh bearings, every future service event is clean and predictable. Fluid flushes come out clear. Fittings break loose without a torch. Calipers slide out without a fight. The contamination cycle that plagues original steel systems — where each service event introduces more debris and makes the next one harder — never starts. You stay ahead of the system instead of chasing it.

Your vintage 4WD deserves a brake system built to the same standard as the rest of your build. Stop inheriting problems from 50 years ago. Build clean, build right, and build something that's ready for the next 50 years. The parts are in stock at Laguna 4WD Supply Co. — and so is the expertise to help you spec it correctly.
